| MTK Charging Circuit Diagram |

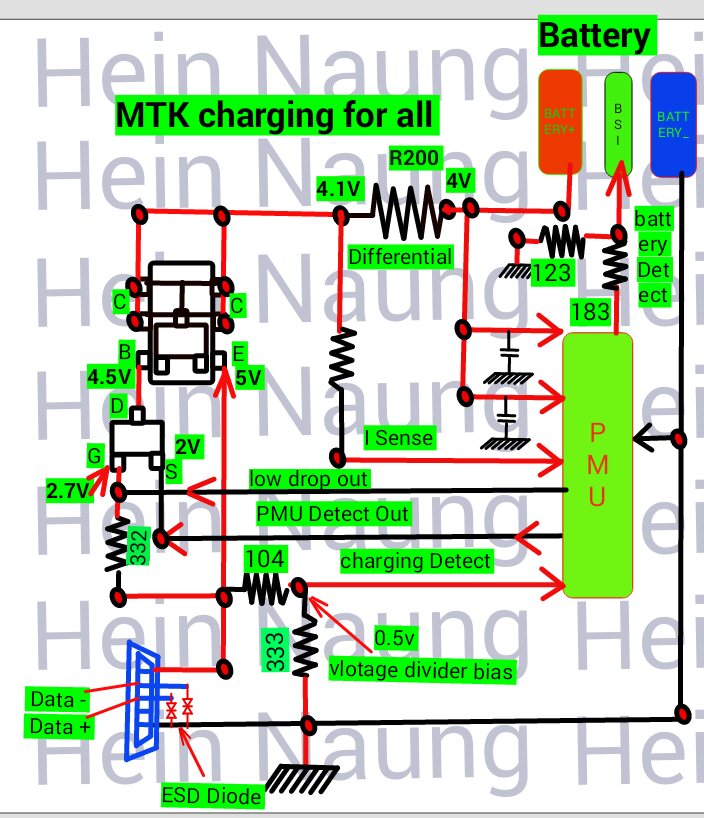

MTK phones charging circuit works
Charging Ic seek Charging Ic beside R200. Adjacent to the R200, IC charging IC. Typically MTK charging section 6pin transistor dive 5v charging directly from a given company's .Battery R200 (0.2 ohm). 6pin PNP transistor provides all of the four C's to work .6 pin Transistor B minus volt. Therefore, B or + 4.5V (-0.5V) terms affliction E to C or flow. Charging the work activities. (Note B to +4.5 effect is the B -0.5 Arrive said, must be considered .MTK phone over the sign display picture charging diving incoming 5V to 104 (100k) R and connect . 333 (33K) R received. Gnd putting voltage divider bias as construction. pmu (power Ic) or 0.5v almost time. Charging Detect from Volt a supplier put. PMU to 0.5 V when Charging Detect out from 3pin FET transistor of S or 2V emerged through sign who showed me the work began working for. FET transistor of G, power Ic to low drop out (LDO) from controlled for. LDO through R200 top ends of both sides volt difference based on differential line Ampere
(I Sense) control. LDO us Battery status on the go . change control activities.
the next days MTK charging of cast into consideration images still will. his delight post is emitted 5 seconds wait. skip clicking accessed learn.
MTK charging error For English
